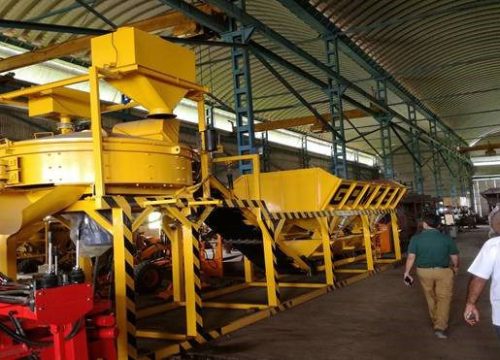

20 cu.m/hour BATCHING PLANT
SAILENT FEATURES:
- Mobile plant easy for transportation from one site to another.
- Quick erection and commissioning.
- Easy maintenance and low running cost
- No partion wall required which saves the civil work and cost.
- Minimum installation area and minimum civil work.
- Print out port for each batch report.
- Vibrators for easy discharge.
- Screw feeders to pour cement speedily, hence increasing productivity.
- Robust and steady structure made for longer durability and protection from corrosion.
- Pneumatically operated gate for aggregate and sand.
- PLC control system with SCADA(optional).
- Cement silo with accessories(optional).
OVERVIEW & SPECIFICATIONS
| Sr.no | Technical Specification 20 m3 Reversible Drum Type | 20 |
|---|---|---|
| 1. | Concrete Output/Hr | 20 m3 |
| 2. | Aggregate Storage System In-Line-Bin | Yes |
| a. | Aggregate Storage Capacity Heaped | 8 m3 |
| b. | Sand Vibrator | Yes |
| 3. | Aggregate Weighing System | Yes |
| a. | Weighing hopper | Yes |
| b. | Electronic Load Cell | 4 Nos. |
| 4. | Charging Conveyor | Yes |
| 5. | Mixer Unit | Yes |
| a. | Type- Reversible | 550/350 |
| b. | Interchangeable Liner Plate | Yes |
| 6. | Cement/Fly Ash Weighing System | Yes |
| a. | Cement/ Fly Ash Hopper | Yes |
| b. | Electromagnetic Load Cell | 2 Nos |
| c. | Cement Vibrator | Yes |
| 7. | Cement Screw Conveyor | 1 Nos. |
| 8. | Pneumatic System | Yes |
| a. | Air Compressor | 2 hp |
| 9. | Water Weighing System Electronic Load Cell |
2 Nos. |
| 10. | Admixture System | Yes |
| a. | Weighing Container | Yes |
| b. | Load Cell | 1 Nos. |
| c. | Capacity | 5 Ltr. |
| 11. | Connected Load For Standard Plant-hp | 20/40/40 |
| 12. | Required DG Set KVA | 50/63/63 |
The above data is for reference only, We reserve the right to adjust the parameters at any time in accordance with the actual situation without prior notice.
