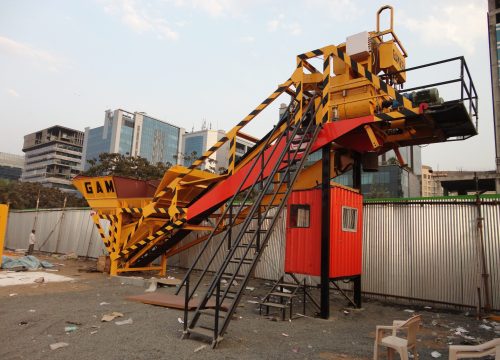

30 to 60 cu.m/h BATCHING PLANT

drum 30 to 60 cum batching plant


  • Drum type mixer technology
  • Robust and steady structure made for longer durability and protection from corrosion.
  • Easy maintenance and low running cost
  • Cover is provided to every electrical motor for protection against dust and water.
  • Pneumatically operated gate for aggregate and sand.
  • Control cabin.
  • Print out port for each batch report.
  • MPCB are provided for all electric motor safety.
  • Separate weighing system for cement and fly ash.
  • Screw feeders to pour cement speedily, hence increasing productivity.
  • No partion wall required which saves the civil work and cost.
  • PLC control system with SCADA(optional).
  • Cement silo with accessories(optional).


Sr.no Technical Specification 30/40/60 m3 Reversible Drum Type 30 40 60
1. Concrete Output/Hr 30 m3 40 m3 60 m3
2. Aggregate Storage System In-Line-Bin Yes Yes Yes
a. Aggregate Storage Capacity Heaped 10 m3 16 m3 20 m3
b. Sand Vibrator Yes Yes Yes
3. Aggregate Weighing System Yes Yes Yes
a. Weighing hopper Yes Yes Yes
b. Electronic Load Cell 4 Nos. 4 Nos. 6 Nos.
4. Charging Conveyor Yes Yes Yes
5. Mixer Unit Yes Yes Yes
a. Mixer Type Reversible Reversible Reversible
b. Capacity 750/500 1250/750 1800/1200
c. Interchangeable Liner Plate Yes Yes NA
6. Cement/Fly Ash Weighing System Yes Yes Yes
a. Cement/ Fly Ash Hopper Yes Yes Yes
b. Electromagnetic Load Cell 2 Nos 2 Nos. 2 Nos.
c. Cement Vibrator Yes Yes Yes
7. Cement Screw Conveyor 1 Nos. 1 Nos. Yes
8. Pneumatic System Yes Yes Yes
a. Air Compressor 3 hp 5 hp 7.5 hp
9. Water Weighing System
Electronic Load Cell
2 Nos. 2 Nos. Yes
10. Admixture System Yes Yes Yes
a. Weighing Container Yes Yes Yes
b. Load Cell 1 Nos. 1 Nos. Yes
c. Capacity 5 Ltr. 5 Ltr. 10 Ltr.
11. Connected Load For Standard Plant-hp 28/55/55 48/98/108 65
12. Required DG Set KVA 63/75/75 63/156/156 100

The above data is for reference only, We reserve the right to adjust the parameters at any time in accordance with the actual situation without prior notice.
