Mini Mobile Batching Plant 500 With Reversible Motor
+91 7666081830 adil@gamzenindia.com

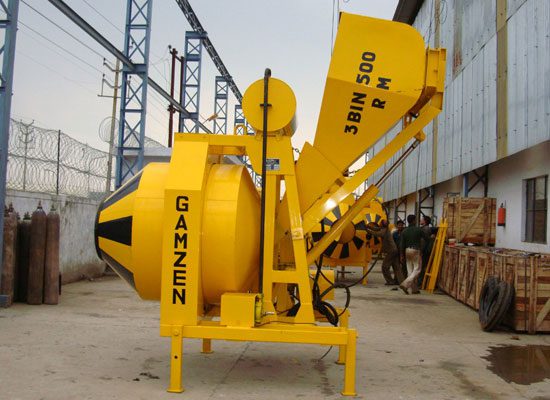

MINI MOBILE BATCHING PLANT  500 RM

Gamzen manufactures wide range of Reversible mixers with various capacities. We are the first in India to provide mini mobile batching plants with dial guage as well as digital weighing system.Our compact mini batching plant has unique features like auto cut water metre, positive drive gear box no chains or belts, Square and Rectangular Hollow sections are used to make it long life and vibration free, One piece forged steel for extra long life(Hob Cut).

OVERVIEW & SPECIFICATIONS

Dimensions 500 RM
Output  cum/hr 9/20
Drum length mm 1590
Drum diameter  mm 1295

Diesel engine

Electric motor

hp

20

7.5

Rotary speed of mixing drum rpm 16/20
Water tank ltrs 180
Pneumatic wheels 600x16
Loading/weighing   Hydraulically
Hydrulic fluid   grade-68

Hydrulic tank

Hydrulic (Diesel)

ltrs

14

120

Dial calibration kgs 800
Drive (in Rm) mm gear box
Size of drum opening mm 535
Drum discharge height dial guage mach. mm 1000
Drum discharge height 3 bin machine mm 1500
Electronic load cells Digital electronic(video/audio)

The above data is for reference only, We reserve the right to adjust the parameters at any time in accordance with the actual situation without prior notice.
