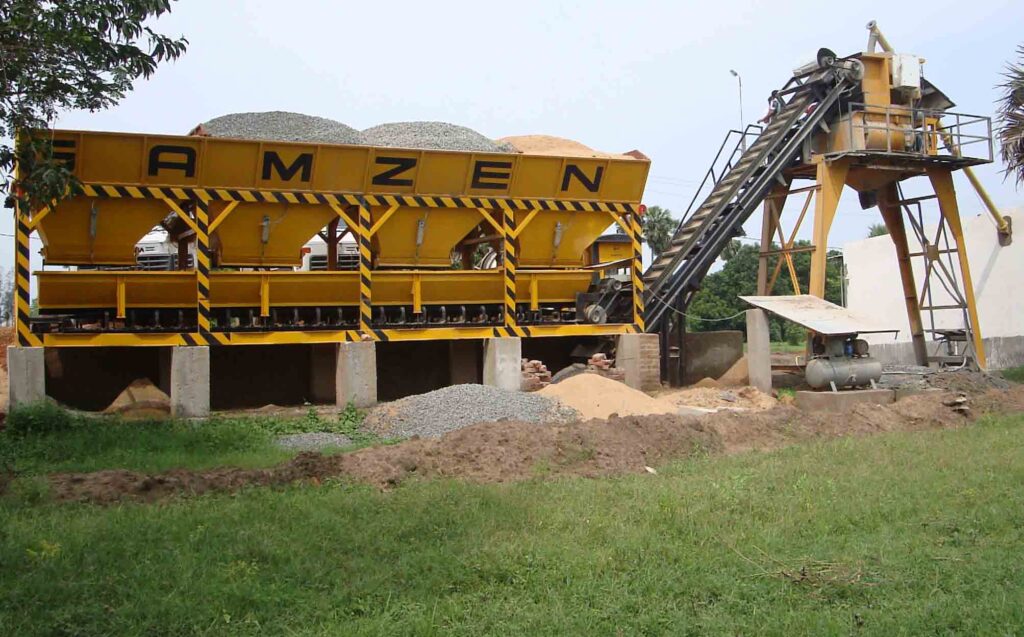

30 to 60 cu.m/hour BATCHING PLANT
SAILENT FEATURES:
- Twin Shaft mixer technology.
- Easy maintenance and low running cost
- Cover is provided to every electrical motor for protection against dust and water.
- Pneumatically operated gate for aggregate and sand.
- Control cabin.
- Print out port for each batch report.
- MPCB is provided for all-electric motor safety.
- Separate weighing system for cement and fly ash.
- Screw feeders to pour cement speedily, hence increasing productivity.
- No partion wall required which saves the civil work and cost.
- Robust and steady structure made for longer durability and protection from corrosion.
- PLC control system with SCADA(optional).
- Cement silo with accessories(optional).
OVERVIEW & SPECIFICATIONS
Sr.no | Technical Specification 30/40/60 m3 Twin Shaft Type |
30 m3 | 40 m3 | 60 m3 |
---|---|---|---|---|
1. | Concrete Output/Hr | 30 m3 | 40 m3 | 60 m3 |
2. | Aggregate Storage System In-Line-Bin | Yes | Yes | Yes |
a. | Aggregate Storage Capacity Heaped | 10 m3 | 16 m3 | 30 m3 |
b. | Sand Vibrator | Yes | Yes | Yes |
3. | Aggregate Weighing System | Yes | Yes | Yes |
a. | Weighing hopper | Yes | Yes | Yes |
b. | Electronic Load Cell | 4 Nos. | 4 Nos. | 4 Nos. |
4. | Charging Conveyor | Yes | Yes | Yes |
5. | Mixer Unit | Yes | Yes | Yes |
a. | Mixer Type | Twin Shaft | Twin Shaft | Twin Shaft |
b. | Capacity | 750/500 | 1250/750 | 1500/1000 |
c. | Interchangeable Liner Plate | Yes | Yes | NA |
6. | Cement/Fly Ash Weighing System | Yes | Yes | Yes |
a. | Cement/ Fly Ash Hopper | Yes | Yes | Yes |
b. | Electromagnetic Load Cell | 2 Nos | 2 Nos. | 2 Nos. |
c. | Cement Vibrator | Yes | Yes | Yes |
7. | Cement Screw Conveyor | 1 Nos. | 1 Nos. | Yes |
8. | Pneumatic System | Yes | Yes | Yes |
a. | Air Compressor | 3 hp | 5 hp | 7.5 hp |
9. | Water Weighing System Electronic Load Cell |
2 Nos. | 2 Nos. | Yes |
10. | Admixture System | Yes | Yes | Yes |
a. | Weighing Container | Yes | Yes | Yes |
b. | Load Cell | 1 Nos. | 1 Nos. | Yes |
c. | Capacity | 5 Ltr. | 5 Ltr. | 5 Ltr. |
11. | Connected Load For Standard Plant-hp | 28/55/55 | 48/98/108 | 125/150 |
12. | Required DG Set KVA | 63/75/75 | 63/156/156 | 187/220 |
The above data is for reference only, We reserve the right to adjust the parameters at any time in accordance with the actual situation without prior notice.
